Q-Play Integration Server - Security

Q-Play Integration Server - Security

Introduction

This guide provides a comprehensive overview of the architecture and security measures underpinning Q-Play integrations. By combining robust system design with the proper configuration of user accounts utilized for integration between Q-Play and third-party services, we ensure a secure and seamless setup. Following these guidelines will help maintaining the integrity of your integrations while enabling a frictionless experience within Q-Play.

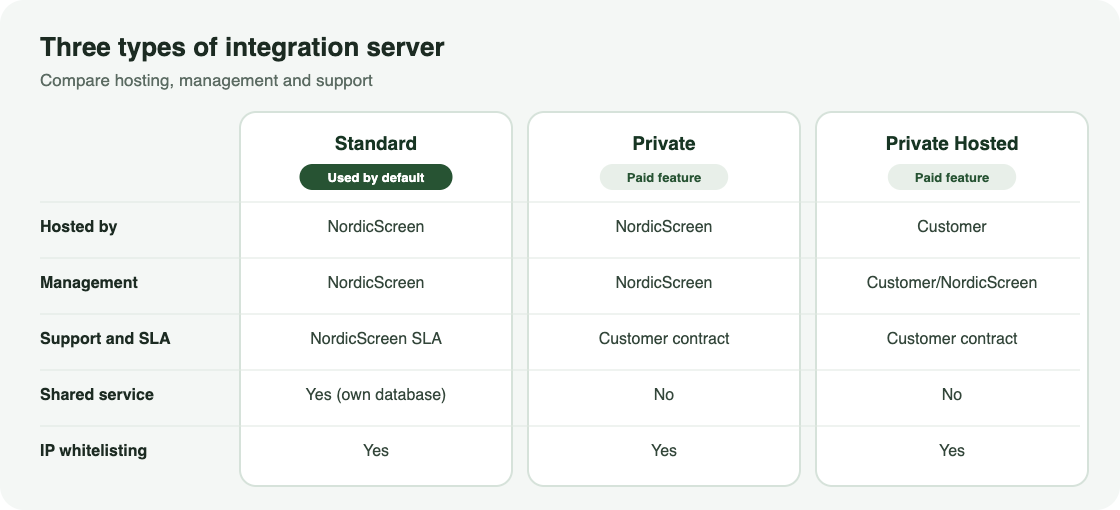

Q-Play Integration Service - Standard

Hosted by: NordicScreen
Management: NordicScreen
Support and SLA: According to NordicScreen SLA
Shared service: Yes
Q-Play Integrations services

This services is standard and default used for alle accounts and integrations.

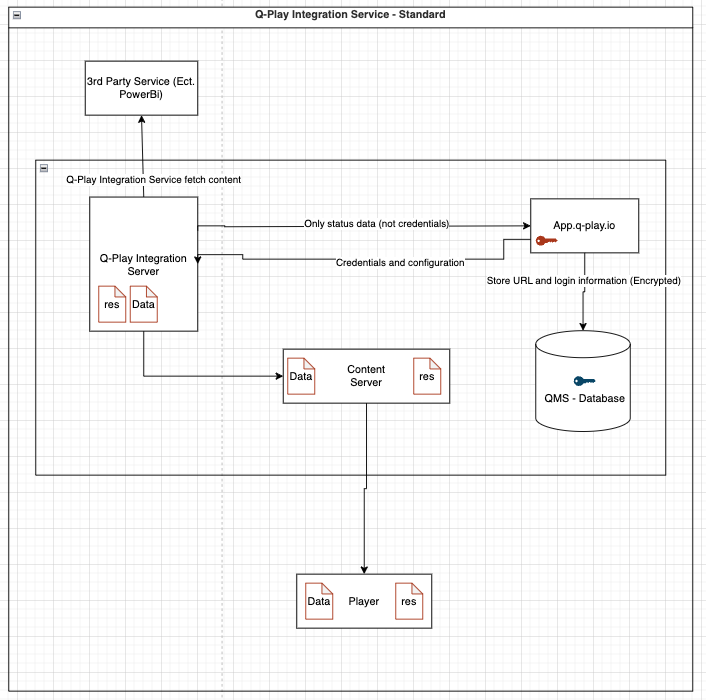

Q-Play Integration setup
1. Login, password and resource are encrypted on "QMS - Database" and stored on "Q-Play Integration Server" database.
2. "Q-Play Integration Server" fetches data, decrypt it and start integration which stores image or data as a resource.
3. All data is grouped in customer specific databases on "Q-Play Integration Server"
3. Player fetches resource from "Content Server"
Notes
Disclaimer:
Multiple customer is running integrations on the same server. Every account have their own database on the "Q-Play Integration Server"
Idea
Possible Security Configurations
* IP whitelisting of "Q-Play Integration Server"
      Configuration of allowed IP-addresses to access the the 3rd party service. Done in the 3rd party service by the customer.
* Site-to-Site VPN between customer network and "Q-Play Integration Server"
      Add-On, paid feature, contact NordicScreen regarding pricing.

Private Q-Play Integrations Server - Paid Feature

Hosted by: NordicScreen
Management: NordicScreen
Support and SLA: Paid feature
Shared service: No (Private for one account)

This services is private and only used by one account. No other integration is running on this service.

Q-Play Integration setup
1. Login, password and resource are encrypted on "QMS - Database" and stored on "Private Q-Play Integration Server" database.
2. "Private Q-Play Integration Server" fetches data, decrypt it and start integration which stores image or data as a resource.
3. All data is grouped in customer specific databases on "Private Q-Play Integration Server"
3. Player fetches resource from "Content server".
Notes
Disclaimer:
Service and SLA are delivered according to customer specific contract.
Idea
Possible Security configurations
* IP whitelisting of "Q-Play Integration Server"
      Configuration of allowed IP-addresses to access the the 3rd party service. Done in the 3rd party service by the customer.
* Site-to-Site VPN between customer network and "Q-Play Integration Server"
      Add-On, paid feature, contact NordicScreen regarding pricing.

Private Hosted Q-Play Integrations Server - Paid Feature

Hosted by: Customer
Management: Customer/NordicScreen
Support and SLA: Paid feature
Shared service: No (Private for one account)

This service is private and only used by one account. No other integration is running on this service. The service is hosted by the customer in a private network.

Q-Play Integration setup
1. Login, password and resources are encrypted on "QMS - Database" and stored on "Private Hosted Q-Play Integration Server" database.
2. "Private Hosted Q-Play Integration Server" fetches data, decrypt it and start integration which stores image or data as a resource.
3. All data is grouped in customer specific databases on "Private Hosted Q-Play Integration Server"
3. Player fetches resource from "Content server" or "Private Hosted Q-Play Integration Server".
Notes
Disclaimer:
*Service and SLA are delivered according to customer specific contract.
* All players require access to app.q-play.io to operate.
* Players need to have access to the "Private Hosted Q-Play Integration Server" to show content from the integrations.
Idea
Possible Security configurations
* IP whitelisting of "Q-Play Integration Server"
      Configuration of allowed IP-addresses to access the the 3rd party service. Done in the 3rd party service by the customer.
