Q-Play V1: Getting started with Q-Play editor

Q-Play V1: Getting started with Q-Play editor

Introduction

This guide is for Q-Play V1. Here you create your first series for an info screen in the Q-Play editor. You are free to use the system and see your design in a preview.

To show your info screen on a screen, you need a subscription and a player. Order them in PlayControl → New Player at the top right. If you are a customer through a dealer, contact your dealer.


1. Create a series

  1. Click Series. Log in to Q-Play, and click Series in the menu on the left.
  2. Click New Series.

Q-Play V1 series overview with New Series

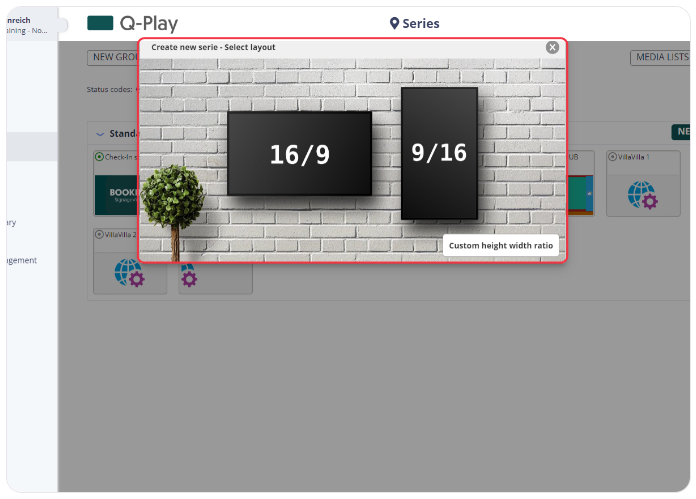

  1. Choose a layout. Choose the layout for your info screen.

Q-Play V1 layout options for a new series

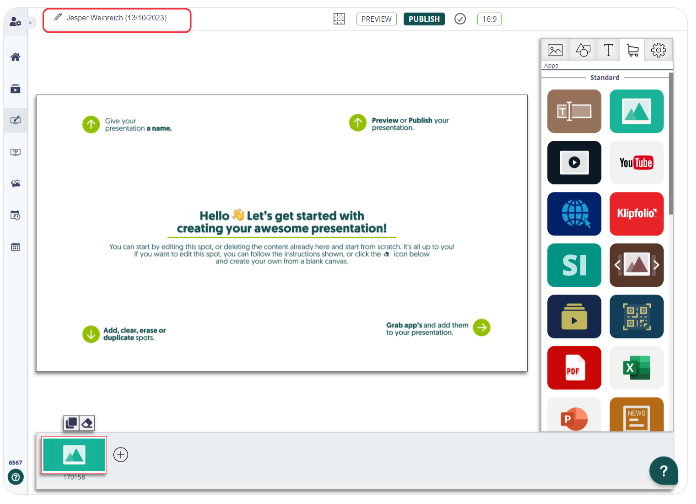

  1. Name your spot. You do this in the top left corner.

Q-Play V1 editor with a new spot

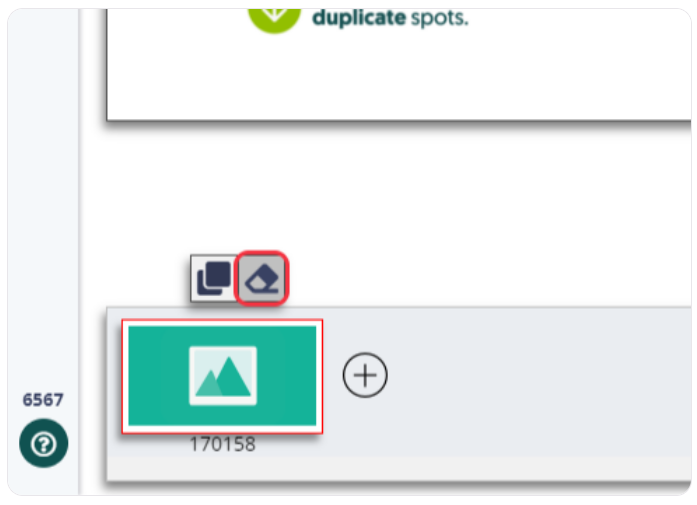

  1. Start from an empty spot (optional). Click the spot at the bottom left, and choose Clear Spot.

Q-Play V1 spot menu with Clear Spot


2. Design your spot

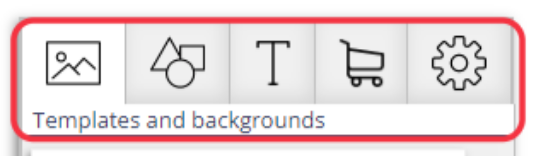

The menu on the right has the tools you need. Click the tabs to choose a tool.

Q-Play V1 editor menu with tools

Templates and backgrounds
Choose a template or change the background. See How to add a background image to your series.

Clipart
Add graphics to your spot.

Text box
Add text. See How to use the Text App.

Apps
Add apps like images, video and news.

Spot settings
Set, for example, the display time for the spot.


3. Preview and publish

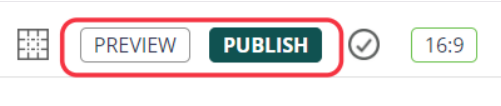

Click Preview at the top. A new browser window shows your spot as on an info screen. When you are happy, click Publish.

Q-Play V1 editor with Preview and Publish


4. Next steps

  1. Download the player software for the device that controls your info screen.
  2. Add the player to PlayControl. See How to add new Player to PlayControl.
  3. Add your series to the player. See Add Serie to Player in PlayControl.

Frequently asked questions

Do I need a player to try the editor?

No. You can use the editor and see your design in Preview without a player.

How do I order a player?

Go to PlayControl → New Player. Customers through a dealer contact their dealer.

Does this guide apply to Q-Play V2?

No. This guide describes Q-Play V1.
