Q-Play V1: How to use the Touch Screen App

Q-Play V1: How to use the Touch Screen App

Introduction

This guide is for Q-Play V1. If you have a touch screen, you can build an interactive experience for customers and employees. Create a series with several spots first, and then add the Touch Screen App.

You can watch the video or follow the written steps below.


1. Prepare your spots

Before you add the Touch Screen App, adjust the settings for each spot.

  1. Click the spot on the timeline. Select the spot you want to adjust.

Q-Play V1 timeline with spots

  1. Click the gear icon. The spot settings open.

Q-Play V1 editor with the gear icon for spot settings

  1. Name the spot, and set the display time to infinite. Enter a name in the Title field, so it is easy to keep track. Because you navigate between spots by touch, set the display time to infinite.

Q-Play V1 spot settings with Title and display time


2. How to add a touch area

  1. Open the app menu. Click the cart icon, and find the Touch Screen App.

Q-Play V1 app menu under the cart icon

  1. Click the Touch Screen App. A touch element is placed on your spot.

Q-Play V1 app menu with the Touch Screen App

  1. Click the touch element. The app settings open in the right-hand panel.

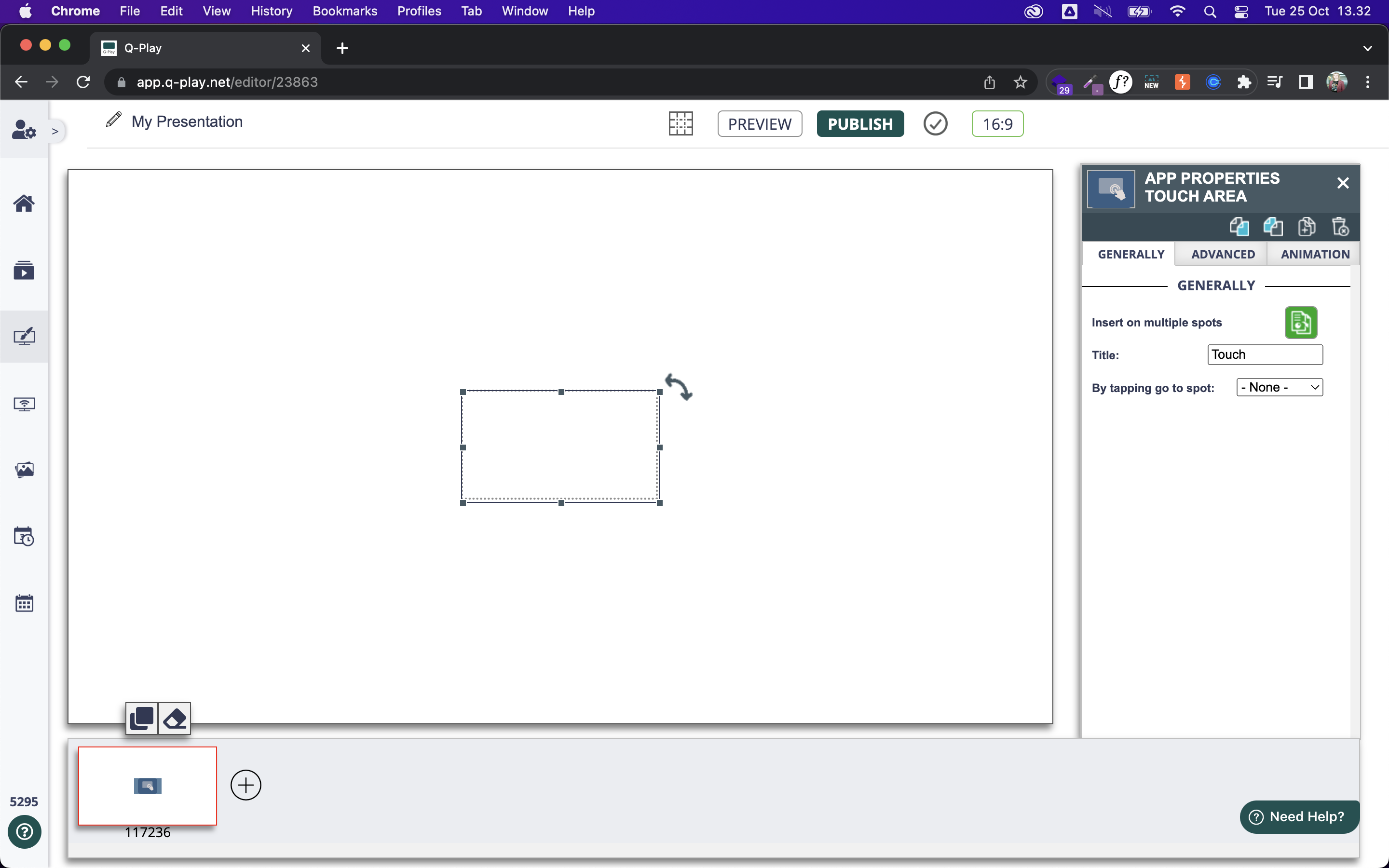

Q-Play V1 app settings for the touch area

  1. Choose the target spot. Open the drop-down By tapping go to spot, and choose one of your spots.

Q-Play V1 drop-down for choosing the target spot

Repeat the steps for each touch element.


Next steps

When your spot is ready, click Publish to send it to your player. If the series is not yet on a player, see Add Serie to Player in PlayControl.


Frequently asked questions

Why does my spot change by itself?

The spot still has a display time. Set the display time to infinite in the spot settings.

Do I need a touch screen?

Yes. The Touch Screen App only works on screens with touch.

Can I see the result before it goes to the screen?

Yes. Click Preview to the left of Publish at the top of the editor.

Does this guide apply to Q-Play V2?

No. This guide describes Q-Play V1. Menus and buttons may look different in V2.
