Videowall setup 4 screens without splitter - Intel version

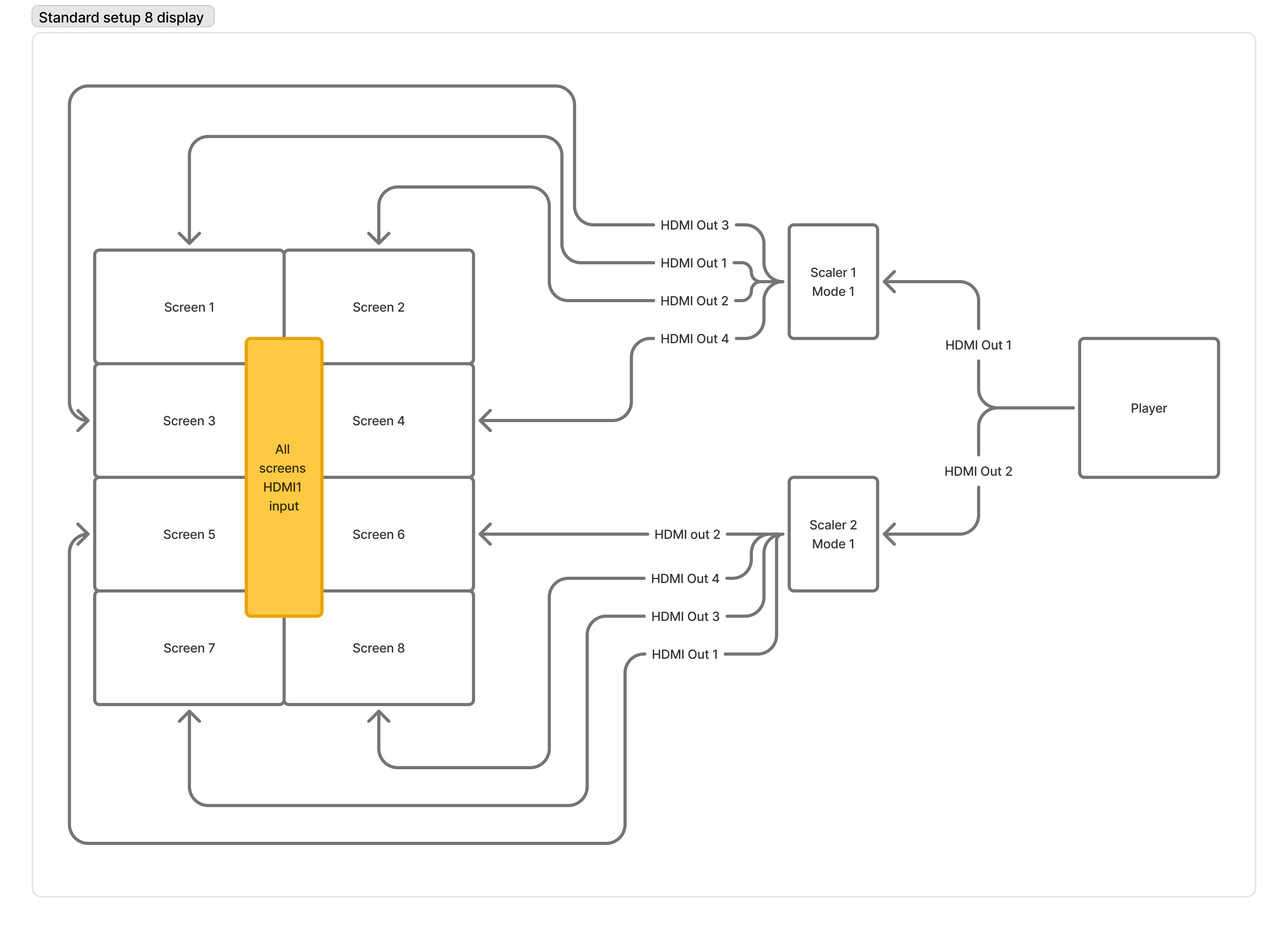

1. Connect the screens to the player as indicated on the attached diagram. It's important that all screens use HDMI1 input port.
2. Boot the player, terminate Qplay software by pressing F4 and verify that all screens are showing part of the desktop.
3. Right click desktop and choose "display settings", set all screens resolution to 1920x1080
4. Open Intel Graphics Command Center by going to windows menu and just search for it if it is not pinned to the start menu.
5. Go to the Display section and the screens should show up as 1-4 from left to right.
6. Using the three dots, combine screen 1 and 2 horizontally
7. Combine screen 3 & 4 horizontally, they should now show as 2 and 3 as screen 1 and 2 are combined and showing as screen 1.
8. Combine screen 1 & 2 Vertically.
9. There should now be one big desktop available spanning correctly across all screens
10. Go to windows display settings again and set resolution to 3840x2160 if possible, and verify that screen scaling is set to 100%.
11. Start Qplay software, content should appear shortly across all screens.
