Videowall setup 6 screens with splitters - Intel version

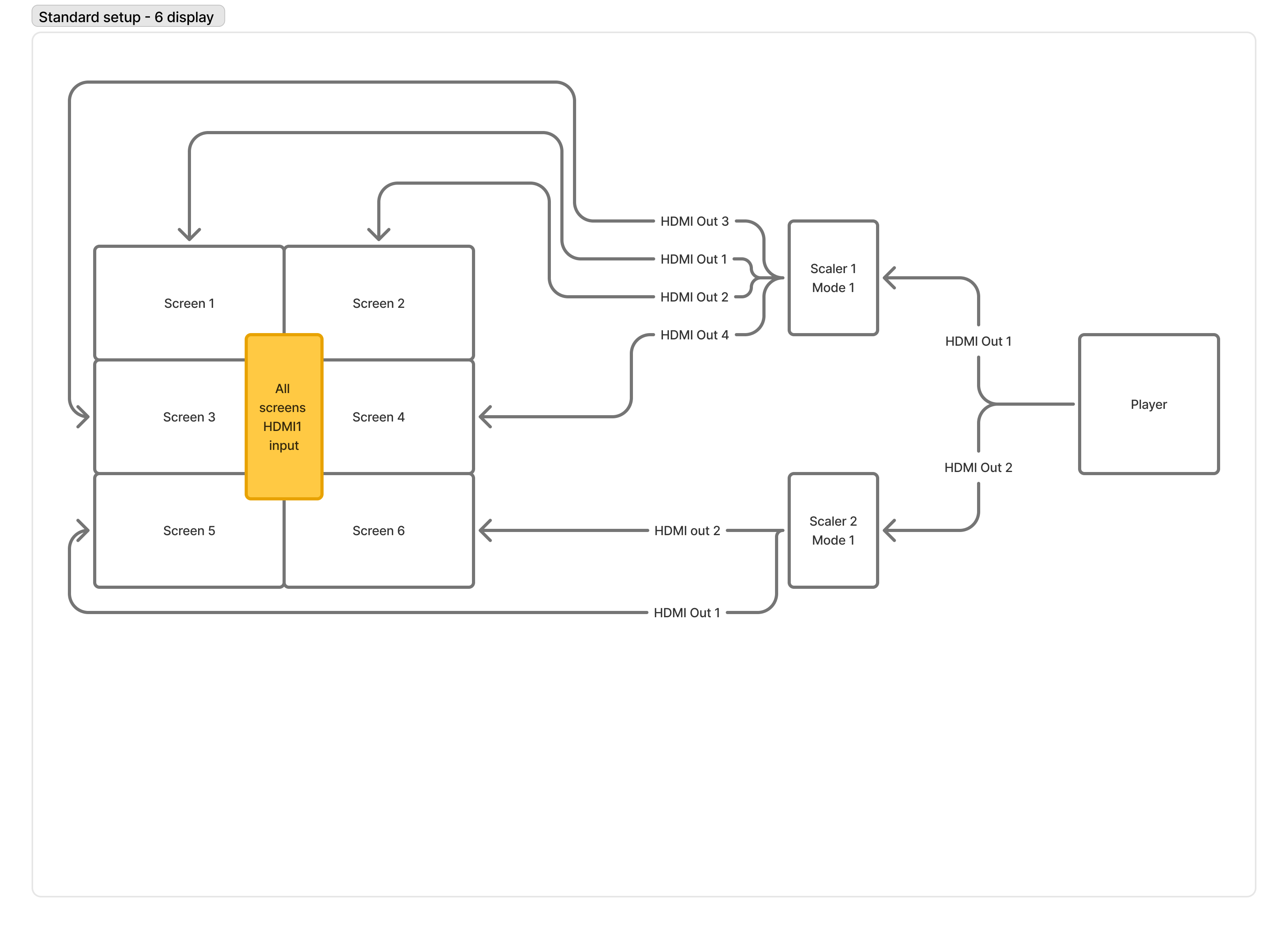

1. Connect the screens to the player as indicated on the attached diagram. It's important that all screens use HDMI1 input port.
2. Boot the player, terminate Qplay software by pressing F4 and verify that all screens are showing part of the desktop.
3. Right click desktop and choose "display settings" verify that two screens appear with resolution 3840x2160
4. Open Intel Graphics Command Center by going to windows menu and just search for it if it is not pinned to the start menu.
5. Right click windows taskbar and set alignment to top of desktop
6. Go to the Display section and the screens should show up as 1-2 from left to right.
7. Using the three dots, combine screen 1 and 2 vertically
8. There should now be one big desktop available spanning correctly across all screens
9. Go to windows display settings again and verify that screen scaling is set to 100%.
10. Start Qplay software, content should appear shortly across all screens.
Note on this setup, the player will have the bottom part of the desktop showing as black, as there are no screens connected to the outputs 3 and 4, but the player software will render content from top-left corner so this is not an issue.
